3hp VFD 3 Phase

Our 380V VFD is a high-performance variable frequency drive designed specifically for three-phase systems, mainly used to improve the efficiency and control accuracy of industrial equipment, suitable for occasions that require precise speed control and torque management.

1. Stable output: capable of meeting various power requirements, suitable for heavy equipment use.

2. Precise control: Using vector control technology to achieve precise speed and torque adjustment, improving motor operating efficiency.

3. Energy saving effect: By adjusting the motor speed, energy consumption is reduced and electricity bills are saved.

4. Easy to operate: equipped with an intuitive control panel and clear display, convenient for setting up and monitoring.

5. Strong durability: Designed to be sturdy and adaptable to harsh industrial environments, ensuring long-term stable operation.

Input voltage: three-phase 380V, suitable for industrial power supply.

Output voltage: Three phase adjustable voltage to meet different motor requirements.

Frequency range: 0.00~400.00Hz, suitable for various applications.

Power range: Supports motors up to 1000kW, suitable for heavy equipment.

Suitable for applications such as heavy machinery, industrial production lines, and power generation equipment that require high torque and precise speed control.

1. Accurate control: providing precise speed and torque adjustment to optimize equipment operation.

2. Reliable operation: Durable design, adaptable to harsh environments, ensuring long-term stability.

3. Cost saving: Reduce energy consumption and electricity expenses through speed regulation management.

4. Service support: Provide comprehensive technical support and after-sales service, making use more reassuring.

If you need to learn more information or discuss specific needs, please feel free to contact us at any time.

MK500 Series High Performance Vector AC Inverter VFD

No.	Model No.	Rated Power	Input Current	Output Current	Outline Dimensions	Package Dimensions	Gross Weight
		(KW)	(A)	(A)	(H*W*D)(mm)	(H*W*D)(cm)	(KG)
Single phase input: Rated 220V (Adapted operating range 208-240 ± 15%), 50/60Hz (± 5%)
1	MK500-2S0.4GB	0.4	5.1	2.5	206*122*164	24*17*21	2.3
2	MK500-2S0.75GB	0.75	8.2	4			2.3
3	MK500-2S1.5GB	1.5	14	7.5			2.3
4	MK500-2S2.2GB	2.2	23	10			2.4
5	MK500-2S4.0GB	4	38	17			2.5
6	MK500-2S5.5GB	5.5	55	25	278*142*181	31*20*24	3.6
7	MK500-2S7.5PB-S	7.5	61	30			3.7
8	MK500-2S7.5GB	7.5	64	32	348*208*208	39*27*27	6.2
9	MK500-2S11GB	11	80	45			6.6
Three phase input: Rated 220V (Adapted operating range 208-240V ± 15%), 50/60Hz (± 5%)
1	MK500-2T0.4GB	0.4	2.4	2.1	206*122*164	24*17*21	2.3
2	MK500-2T0.75GB	0.75	4.6	3.8			2.3
3	MK500-2T1.5GB	1.5	9.0	7.5			2.3
4	MK500-2T2.2GB	2.2	11.4	10.0			2.4
5	MK500-2T4.0GB	4.0	21.2	17			2.5
6	MK500-2T5.5GB	5.5	32.2	25	278*142*181	31*20*24	3.6
7	MK500-2T7.5GB	7.5	41.3	32			3.7
8	MK500-2T11GB	11	46.5	45	348*208*208	39*27*27	6.6
9	MK500-2T15GB	15	57	57			7.1
10	MK500-2T18.5G	18.5	69	75	430*283*230	51*36*32	17
11	MK500-2T22G	22	89	90			18
12	MK500-2T30G	30	106	110	510*340*280	64*45*39	30
13	MK500-2T37G	37	141	152			31
14	MK500-2T45G	45	164	176	602*474*298	69.5*55*52	54
15	MK500-2T55G	55	196	210			55
16	MK500-2T75G	75	240	253			57
17	MK500-2T90G	90	326	350	870*400*350	104*53*56	88
18	MK500-2T110G	110	410	426			90
19	MK500-2T132G	132	446	470	966*569*375	112*67*60	123
Three phase input: Rated 380V (Adapted operating range of 380-460 ± 15%), 50/60Hz (± 5%)
1	MK500-4T0.75GB/1.5PB	0.75	2.4	2.1	206*122*164	24*17*21	2.3
2	MK500-4T1.5GB/2.2PB	1.5	4.6	3.8			2.3
3	MK500-4T2.2GB/4.0PB	2.2	6.3	5.1			2.3
4	MK500-4T4.0GB/5.5PB	4.0	11.5	9			2.4
5	MK500-4T5.5GB-S	5.5	16.7	13			2.5
6	MK500-4T5.5GB/7.5PB	5.5	16.7	13	278*142*181	31*20*24	3.6
7	MK500-4T7.5GB/11PB	7.5	21.5	17			3.7
8	MK500-4T11GB/15PB	11	32.2	25			4
9	MK500-4T15GB-S	15	41.3	32			4.5
10	MK500-4T15GB/18.5PB	15	41.3	32	348*208*208	39*27*27	6.4
11	MK500-4T18.5GB/22PB	18.5	49.5	37			6.5
12	MK500-4T22GB/30PB	22	59	45			6.8
13	MK500-4T30GB-S	30	56	57			7.3
14	MK500-4T30G/37P	30	57	63	430*283*230	51*36*32	16
15	MK500-4T37G/45P	37	69	75			17
16	MK500-4T45G-S	45	88	90			18
17	MK500-4T45G/55P	45	88	90	510*340*280	64*45*39	29
18	MK500-4T55G/75P	55	105	110			30
19	MK500-4T75G/90P	75	141	152			31
20	MK500-4T90G/110P	90	164	178	602*474*298	69.5*55*52	54
21	MK500-4T110G/132P	110	196	210			55
22	MK500-4T132G/160P	132	240	253			57
23	MK500-4T160G-S	160	287	304			59
24	MK500-4T160G/185P	160	287	304	870*400*350	104*53*56	85
25	MK500-4T185G/200P	185	331	350			88
26	MK500-4T200G/220P	200	368	380			88
27	MK500-4T220G/250P	220	410	426			90
28	MK500-4T250G/280P	250	446	470	966*569*375	112*67*60	123
29	MK500-4T280G/315P	280	495	520			125
30	MK500-4T315G/355P	315	570	590			130
31	MK500-4T355G/400P	355	617	650	1160*720*380	128*83*58	167
32	MK500-4T400G/450P	400	687	725			175
33	MK500-4T450G/500P	450	782	820	1620*720*380	174*83*58	245
34	MK500-4T500G/560P	500	830	860			250



customer service



Create more value for customers

Diversified Services OEM

Own R&D post complete,with the development ability.

Pure R&D technology genre.

Experienced R&D personnel.

Production capacity scale

Annual production and sales of over 150000 units of various products.
Number of export countries 37+.

Innovation Research and Development

All materials are selected industrial grade.

Powerful configuration, the main electrical components are selected from imported high-quality brands.

quality assurance

Strictly follow the entire process of production and testing.

Complete testing equipment with quality control conditions.

Strong quality awareness, with separate control by the quality department.



Our factory & production process



raw material warehouse

Single board testing

Production line production

High temperature aging

Full load test

Finished product packaging

Environmental Protection Industry

Machine Tool Industry

Wood Carving Industry

Integrated Cabinet Industry

Meltblown Industry

Water Pump Industry

Cement Pipe Column Industry

Non Woven Fabric Industry

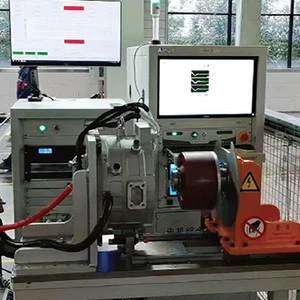

Permanent Magnet Motor Test Bench
